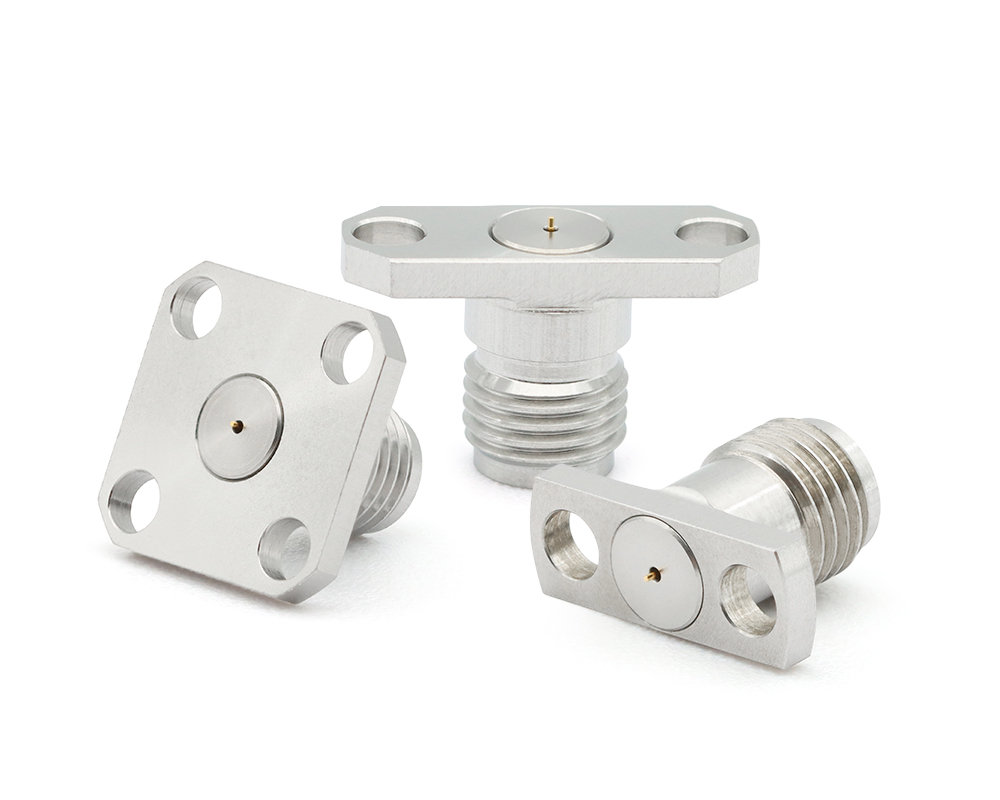

2.92mm air wire connector
Product model
Frequency range
Standing-wave ratio
Inner conductor diameterΦD2
Exposed inner conductor length L
Flange hole spacing
Specification
2.92-KFD0101-23GS
DC-40GHz
1.15
0.23mm
 1mm
Two holes/8.6mm

2.92-KFD0101-30GS
DC-40GHz
1.15
0.30mm
 0.3mm
Two holes/8.6mm

2.92-KFD0101-44GS
DC-40GHz
1.15
0.44mm
 7.5mm
Two holes/8.6mm

2.92-KFD0101-64GS
DC-40GHz
1.15
0.64mm
 6.84mm
Two holes/8.6mm
2.92-KFD0101-75GS
DC-40GHz
1.15
0.75mm
 30mm
Two holes/8.6mm

2.92-KFD0101-110GS
DC-40GHz
1.15
1.10mm
15mm
Two holes/8.6mm
2.92-KFD0101-127GS
DC-40GHz
1.15
1.27mm
8.1mm
Two holes/8.6mm
2.92-KFD0901-23GS
DC-40GHz
1.15
0.23mm
1mm
Two holes/12.2mm
2.92-KFD0901-30GS
DC-40GHz
1.15
0.30mm
0.3mm
Two holes/12.2mm
2.92-KFD0901-44GS
DC-40GHz
1.15
0.44mm
7.5mm
Two holes/12.2mm
2.92-KFD0901-64GS
DC-40GHz
1.15
0.64mm
6.84mm
Two holes/12.2mm
2.92-KFD0901-75GS
DC-40GHz
1.15
0.75mm
30mm
Two holes/12.2mm
2.92-KFD0901-110GS
DC-40GHz
1.15
1.10mm
15mm
Two holes/12.2mm
2.92-KFD0901-127GS
DC-40GHz
1.15
1.27mm
8.1mm
Two holes/12.2mm
2.92-KFD0201-23GS
DC-40GHz
1.15
0.23mm
0.5mm
Four holes/8.6mm

2.92-KFD0201-30GS
DC-40GHz
1.15
0.30mm
0.3mm
Four holes/8.6mm

2.92-KFD0201-44GS
DC-40GHz
1.15
0.44mm
6.84mm
Four holes/8.6mm
2.92-KFD0201-64GS
DC-40GHz
1.15
0.64mm30mm
Four holes/8.6mm
2.92-KFD0201-75GS
DC-40GHz
1.15
0.75mm
30mm
Four holes/8.6mm
2.92-KFD0201-110GS
DC-40GHz
1.15
1.10mm15mm
Four holes/8.6mm
2.92-KFD0201-127GS
DC-40GHz
1.15
1.27mm
8.1mm
Four holes/8.6mm
